General

Brand

Hikvision

Model

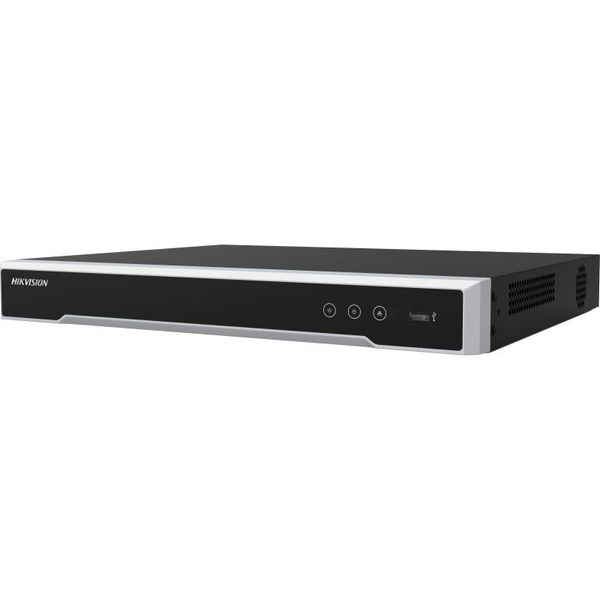

Hikvision DS-7608NI-Q2

Type

08 Channel NVR

Part No

DS-7608NI-Q2

Video Info

Number of Input Channel

08 Channel

Video Compression/Format

H.265/ H.265+/ H.264/ H.264+/ MPEG4

Video Output (VGA)

1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz

Video Output (HDMI)

4K (3840 x 2160)/30Hz, 1920 x 1080/60Hz, 1600 x 1200/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz

Video Recording Res.

8MP, 6MP, 5MP, 4MP, 3MP, 1080P, UXGA, 720P, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF

Max. Video Recording Res.

3840 x 2160

IP Video Input

8-channel, Up to 8 MP resolution

Audio Info

Audio Compression

G.711ulaw/G.711alaw/G.722/G.726

Audio Output Channel

1-ch, RCA (Linear, 1K??)

Two way Audio

1-ch, RCA (2.0 Vp-p, 1KΩ)

Recording & Decoding

Stream Type

Video, Video & Audio

Dual Stream Support

Unmentioned

Live View / Playback Resolution

8 MP/ 6 MP/ 5 MP/ 4 MP/ 3 MP/ 1080p/ UXGA / 720p/ VGA/ 4CIF/ DCIF/ 2CIF/ CIF/ QCIF

Decoding Capability

1-ch@8 MP (30 fps)/5-ch@1080p (30 fps)

Synchronous Playback

8-channel

Network

Network Protocol

TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS

Network Interface (RJ45)

1, RJ45 10M/100M/1000M self-adaptive Ethernet interface

Remote Connections

32

Auxiliary Interface

Number HDD Interface (SATA)

2 SATA

Max HDD Support (GB,TB)

Up to 8TB capacity for each disk

Max. Storage Support

16TB

eSATA

No

Serial Interface

No

USB Port

2 x USB2.0

Technical Info

Incoming Bandwidth

80Mbps

Outgoing Bandwidth

80Mbps

Compatibility

Smart Phone Supported

No

Power Info

Power Supply

12VDC

Max. Power

<-40W

Physical Description

Chassis

1U chassis

Color

Black

Dimensions

385 x 315 x 52mm

Weight (Kg)

<-1.8Kg

Warranty

Warranty Details

1 year

Additional Info

Feature

Hik-Connect for easy network management, Smart search for the selected area in the video; and smart playback to improve the playback efficiency, Instant playback for assigned channel during multi-channel display mode, VCA detection alarm is supported, Connectable to smart IP cameras from Hikvision and the recording, playing back, and backing up of VCA alarms can be realized, Centralized management of IP cameras, including configuration, information import/export, real-time information display, two-way audio, upgrade, etc., 1 self-adaptive 10/100/1000 Mbps network interface, H.265+ compression effectively reduces the storage space and costs by up to 75%, 2 SATA interfaces connectable for recording and backup, HDMI and VGA independent outputs

Others

Working temperature: -10 degree C to +55 degree C, Working humidity: 10% to 90%

Country Of Origin

China

Made in/ Assemble

China
