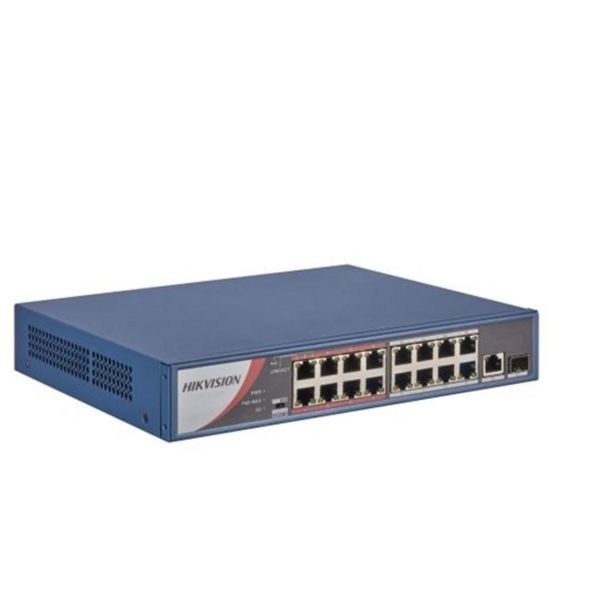

Hikvision DS-3E0318P-E/M 16 Port Fast Ethernet Unmanaged POE Switch
16 x 10/100 Mbps PoE ports, 1 x 10/100/1000 Mbps uplink ethernet port and 1 x 10/100/1000 Mbps uplink SFP port IEEE 802.3 af & at high POE power supply Maximum 250 m long distance PoE transmission
LOGIC GATE
Category List
All products
Details:
- Warranty1 YEAR
GeneralStorage Temperature-40 °C ~ 70 °CWorking/Operating Temperature0 °C ~ 40 °CWorking/Operating Humidity10% – 90% RH non-condensingStorage Humidity5% – 90% RH non-condensingPower Input100~240 V AC，50/60 HzPower Consumption≤150wPerformanceSwitching Capacity7.2 GbpsStore-and-forwardSupportedMAC Address Table4 kMAC Address LearningAuto-learning/ Auto-agingPoEWorking Mode Priority, Standard, Isolate, ExtendPoE StandardIEEE 802.3af, IEEE802.3atPoE Powering ModeSupports 8-pin power supplyPoE Port1-16 Maximum Total Output135 WMaximum Port Output30 WPortHigh-Priority PortPort 1 – 81000 Mbps SFPSFP1 Independent10/100/1000 Mbps RJ451510/100Mbps RJ4516NetworkTransmission Speed Ethernet 10 Mbps (Half Duplex) / 20 Mbps (Full Duplex),Fast Ethernet: 100 Mbps (Half Duplex) / 200 Mbps (Full Duplex),Gigabit Ethernet: 2000 Mbps (Full Duplex)Transmission Medium Ethernet Cat 3 or better UTP/STP,Fast Ethernet: Cat 5 or better UTP/STP,Gigabit Ethernet: Cat 5 or better UTP/STP,1000 Base-SX: MMF (Multimode optical fiber),1000 Base-LX: MMF (Multimode optical fiber) or SMF (Single Mode Fiber)Lightning-proof Ranking4 kVNetwork StandardIEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x, IEEE 802.3z
Hikvision DS-3E0318P-E/M 16 Port Fast Ethernet Unmanaged POE Switch
14,300 BDT
1
Details:
- Warranty1 YEAR
GeneralStorage Temperature-40 °C ~ 70 °CWorking/Operating Temperature0 °C ~ 40 °CWorking/Operating Humidity10% – 90% RH non-condensingStorage Humidity5% – 90% RH non-condensingPower Input100~240 V AC，50/60 HzPower Consumption≤150wPerformanceSwitching Capacity7.2 GbpsStore-and-forwardSupportedMAC Address Table4 kMAC Address LearningAuto-learning/ Auto-agingPoEWorking Mode Priority, Standard, Isolate, ExtendPoE StandardIEEE 802.3af, IEEE802.3atPoE Powering ModeSupports 8-pin power supplyPoE Port1-16 Maximum Total Output135 WMaximum Port Output30 WPortHigh-Priority PortPort 1 – 81000 Mbps SFPSFP1 Independent10/100/1000 Mbps RJ451510/100Mbps RJ4516NetworkTransmission Speed Ethernet 10 Mbps (Half Duplex) / 20 Mbps (Full Duplex),Fast Ethernet: 100 Mbps (Half Duplex) / 200 Mbps (Full Duplex),Gigabit Ethernet: 2000 Mbps (Full Duplex)Transmission Medium Ethernet Cat 3 or better UTP/STP,Fast Ethernet: Cat 5 or better UTP/STP,Gigabit Ethernet: Cat 5 or better UTP/STP,1000 Base-SX: MMF (Multimode optical fiber),1000 Base-LX: MMF (Multimode optical fiber) or SMF (Single Mode Fiber)Lightning-proof Ranking4 kVNetwork StandardIEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x, IEEE 802.3z
